Product Name: Reusable autoclavable fenestrated Oval cups deep Biopsy forceps with spike teeth, head moving hard difficult tissue tumor collection device tools
Type:
With or Without Needle
With or Without Teeth (Alligator Jaw)
Moving Cups
Features:
BW-Oval and fenestrated cups with spike for accerate targeting without sliding.
Desinged to minimize tissue damage. It can be made rotatable."
BV- Able to sway from side to side for deep biopsy of hard and difficult-to-access tissue.
BS-Standard, round fenestrated cups with minimal tissue damage. It can be made rotatable.
BT-Oval and fenestrated cups for deeper biopsy. It can be made rotatable.
BU-Standard, alligator cups for tissue collection on tumor. It can be made rotatable.
BWU-Alligator cups with spike for accerate targeting without sliding. Desinged to minimize tissue damage.
It can be made rotatable."
Specification：

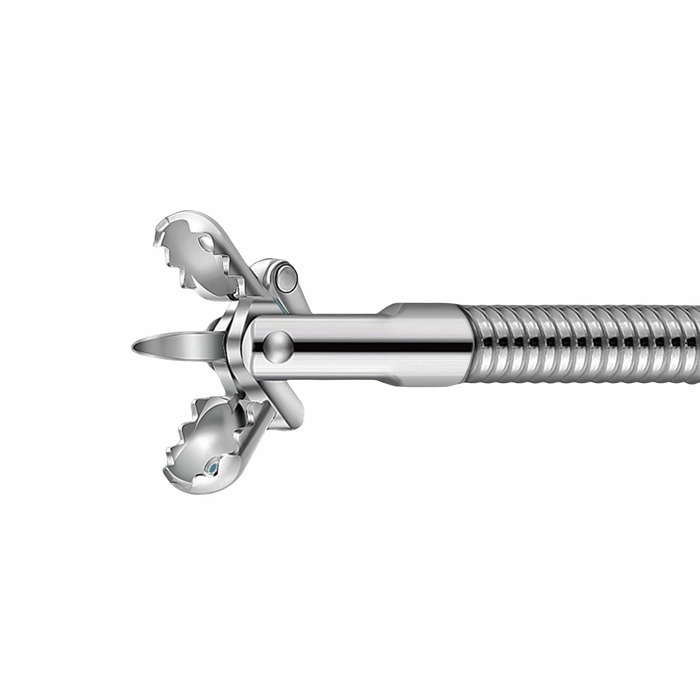

BW- Oval Fenestrated Cup, With needle
| Item No. | Tube Diameter & Working Length | Working Channel Diameter | Opening Width | Scope Of Use |
| AF-1807BW | Ø1.8x700mm | ≥Ø2.0mm | 5.5mm | Choledochoscopy |
| AF-1810BW | Ø1.8x1000mm | ≥Ø2.0mm | 5.5mm | Bronchoscopy |
| AF-1815BW | Ø1.8x1500mm | ≥Ø2.0mm | 5.5mm | Gastroscopy |

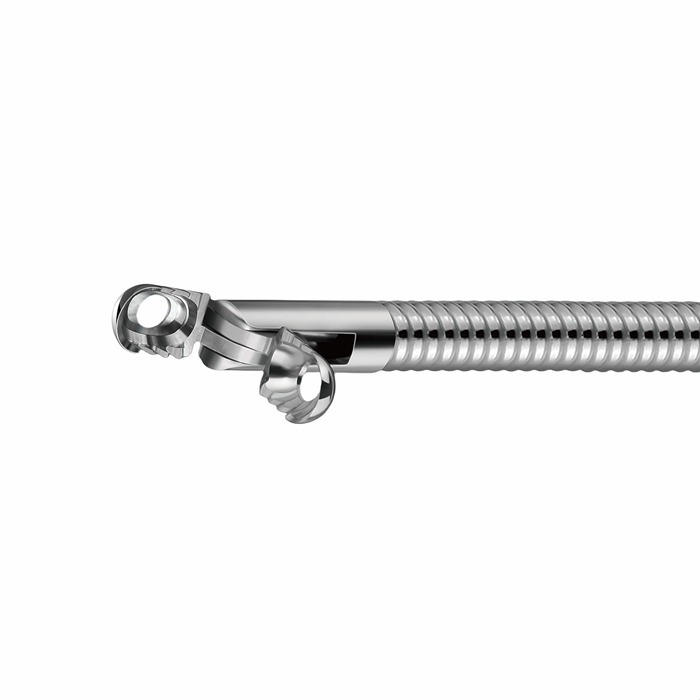

BV- Alligator Jaw, with Moving Cup
| Item No. | Tube Diameter & Working Length | Working Channel Diameter | Opening Width | Scope Of Use |
| AF-1807BV | Ø1.8x700mm | ≥Ø2.0mm | 5.5mm | Choledochoscopy |
| AF-1810BV | Ø1.8x1000mm | ≥Ø2.0mm | 5.5mm | Bronchoscopy |
| AF-1815BV | Ø1.8x1500mm | ≥Ø2.0mm | 5.5mm | Gastroscopy |

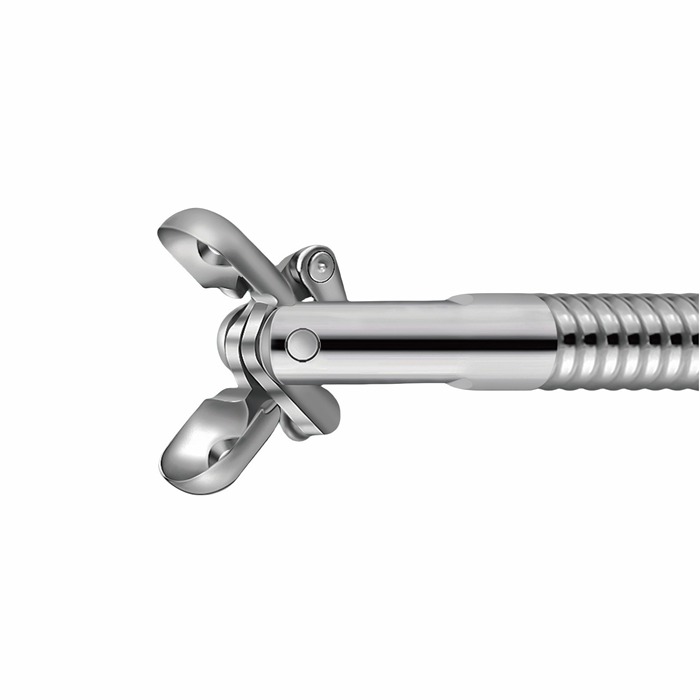

BS- Standard Oval Cup
| Item No. | Tube Diameter & Working Length | Working Channel Diameter | Opening Width | Scope Of Use |
| AF-1807BS | Ø1.8x700mm | ≥Ø2.0mm | 5mm | Choledochoscopy |
| AF-1810BS | Ø1.8x1000mm | ≥Ø2.0mm | 5mm | Bronchoscopy |
| AF-1815BS | Ø1.8x1500mm | ≥Ø2.0mm | 5mm | Gastroscopy |

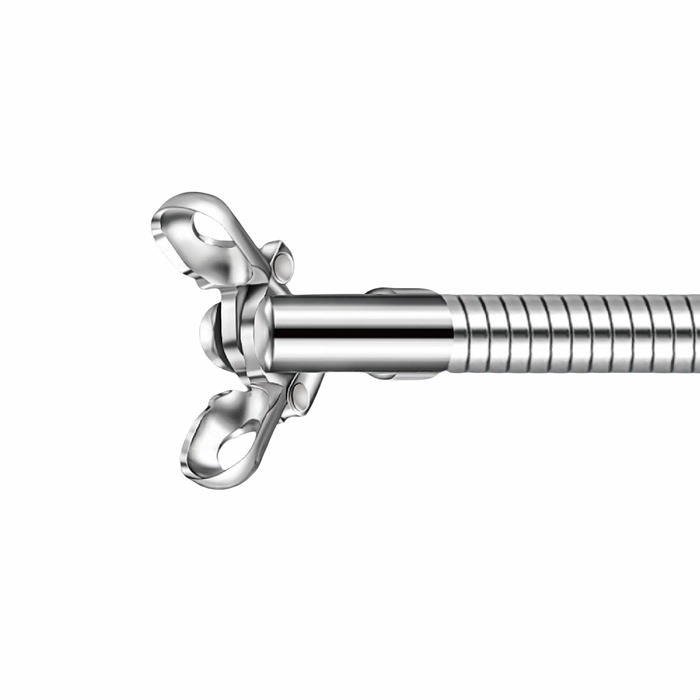

BT- Oval Fenestrated Cup
| Item No. | Tube Diameter & Working Length | Working Channel Diameter | Opening Width | Scope Of Use |
| AF-1807BT | Ø1.8x700mm | ≥Ø2.0mm | 5.5mm | Choledochoscopy |
| AF-1810BT | Ø1.8x1000mm | ≥Ø2.0mm | 5.5mm | Bronchoscopy |
| AF-1815BT | Ø1.8x1500mm | ≥Ø2.0mm | 5.5mm | Gastroscopy |
BU- Alligator Jaw Cups,
| Item No. | Tube Diameter & Working Length | Working Channel Diameter | Opening Width | Scope Of Use |
| AF-1807BU | Ø1.8x700mm | ≥Ø2.0mm | 5.5mm | Choledochoscopy |
| AF-1810BU | Ø1.8x1000mm | ≥Ø2.0mm | 5.5mm | Bronchoscopy |
| AF-1815BU | Ø1.8x1500mm | ≥Ø2.0mm | 5.5mm | Gastroscopy |
BWU- Alligator Jaw Cup, With Needle
| Item No. | Tube Diameter & Working Length | Working Channel Diameter | Opening Width | Scope Of Use |
| AF-1807BWU | Ø1.8x700mm | ≥Ø2.0mm | 5.5mm | Choledochoscopy |
| AF-1810BWU | Ø1.8x1000mm | ≥Ø2.0mm | 5.5mm | Bronchoscopy |
| AF-1815BWU | Ø1.8x1500mm | ≥Ø2.0mm | 5.5mm | Gastroscopy |
