Product Name: Ball tip high frequency cutter marker and bleeding stopper with irrigation function, Insulation Ceramic ball CT cylindrical square tunnel cutting Knife
Type:
Ball Tip Type
Ceramic Ball Tip, CT Knife
Cylindrical Type, Tunnel Knife
Cylindrical Type, Square Knife
Features:

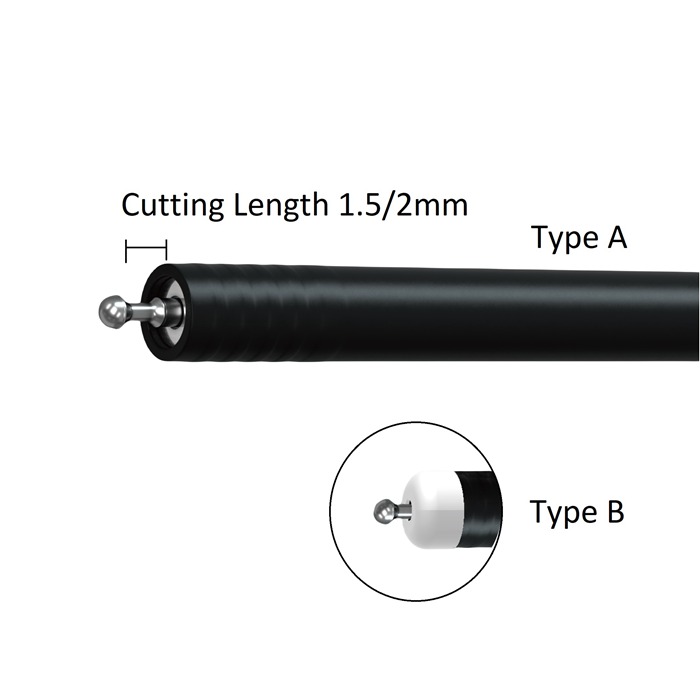

Ball Tip Type --The ball tip can mark, cut and stop bleeding with irrigation function.
Ceramic Ball Tip, CT Knife：----Ceramic tip, insulation, irrigation and cutting.

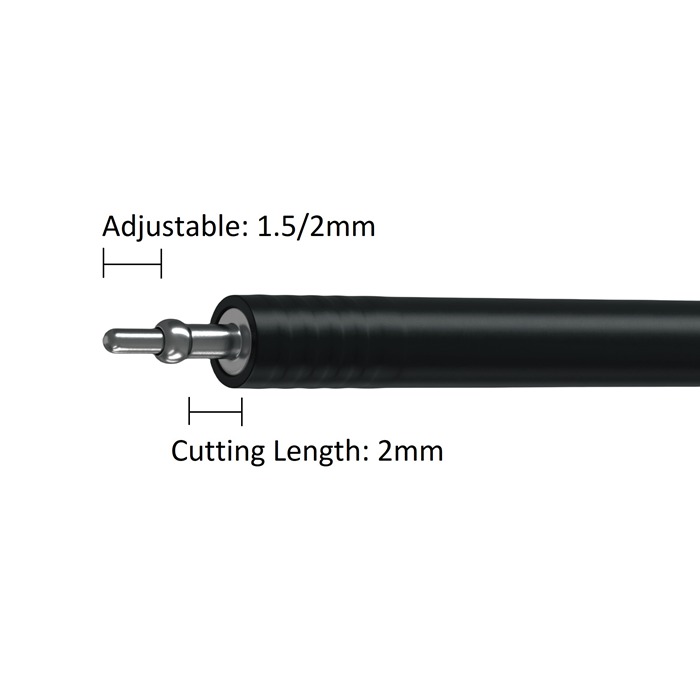

Cylindrical Type, Tunnel Knife---The retractable needle tip can mark and cut with irrigation function.

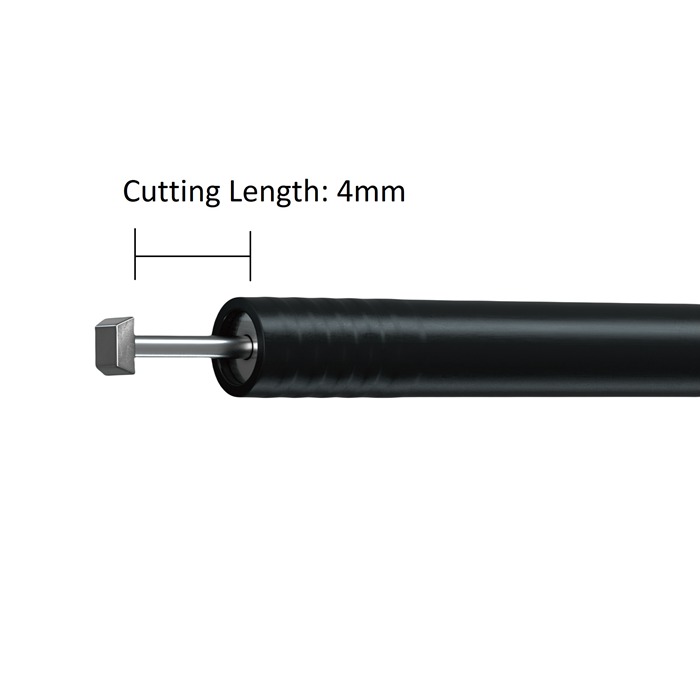

Cylindrical Type, Square Knife---Retractable square knife can smartly cut in all directions with marking and irrigation functions.
Specification：
| Item No. | Tube Diameter & Working Length | Working Channel | Scope of Use | Type |
| AF-D1812EB(A/B) | Ø1.8x1200mm | ≥2.0mm | Bronchoscopy | Ball Tip |
| AF-D1815EB(A/B) | Ø1.8x1500mm | ≥2.0mm | Gastroscopy | Ball Tip |
| AF-D2418EB(A/B) | Ø2.4x1800mm | ≥2.8mm | Gastroscopy | Ball Tip |
| |
|
|
|
|
| AF-D1812EB-3(A/B) | Ø1.8x1200mm | ≥2.0mm | Bronchoscopy | Ceramic Ball Tip |
| AF-D1815EB-3(A/B) | Ø1.8x1500mm | ≥2.0mm | Gastroscopy | Ceramic Ball Tip |
| AF-D2418EB-3(A/B) | Ø2.4x1800mm | ≥2.8mm | Gastroscopy | Ceramic Ball Tip |
| |
|
|
|
|
| AF-D2418EN | Ø2.4x1800mm | ≥2.8mm | Gastroscopy | Cylindrical Tunnel Knife |
| AF-D2423EN | Ø2.4x2300mm | ≥2.8mm | Colonoscopy | Cylindrical Tunnel Knife |
| |
|
|
|
|
| AF-D2418EN-2 | Ø2.4x1800mm | ≥2.8mm | Gastroscopy | Square Knife |
| AF-D2423EN-2 | Ø2.4x2300mm | ≥2.8mm | Colonoscopy | Square Knife |
| |
|
|
|
|
