Product Name: Nitinol Endoscopy retrieval stone extraction basket catheter, 4 wires Stainless steel Percutaneous Foreign body sampling clamp object grasping forceps
Type:
Disposable

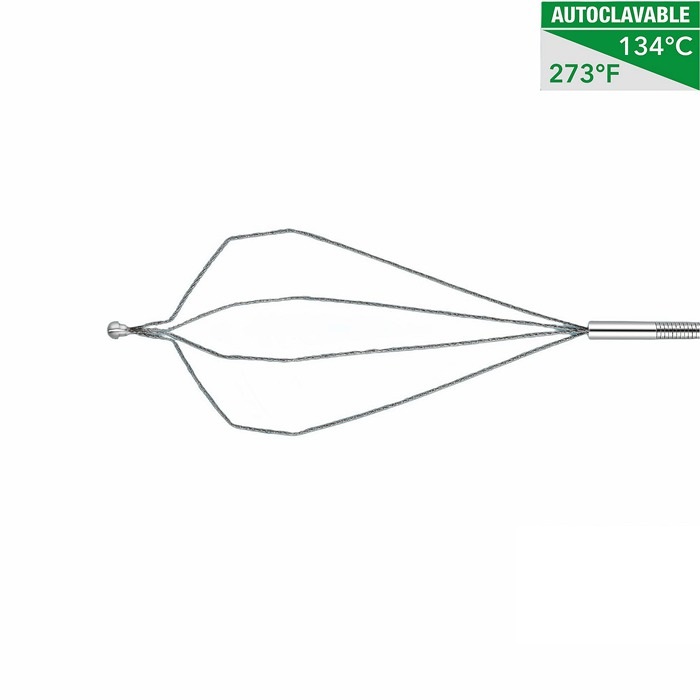

Reusable Autoclavable Temperature
134℃ /273℉

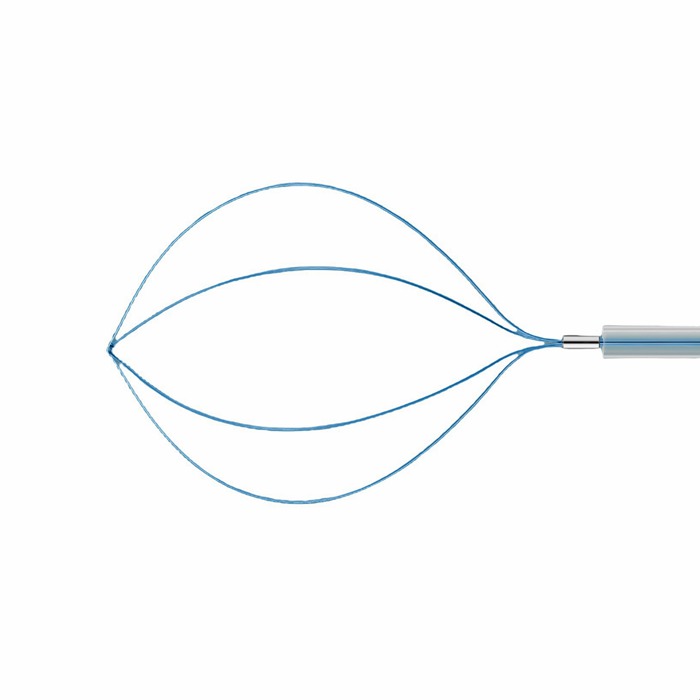

Semi-Circle without Tip, Nitinol

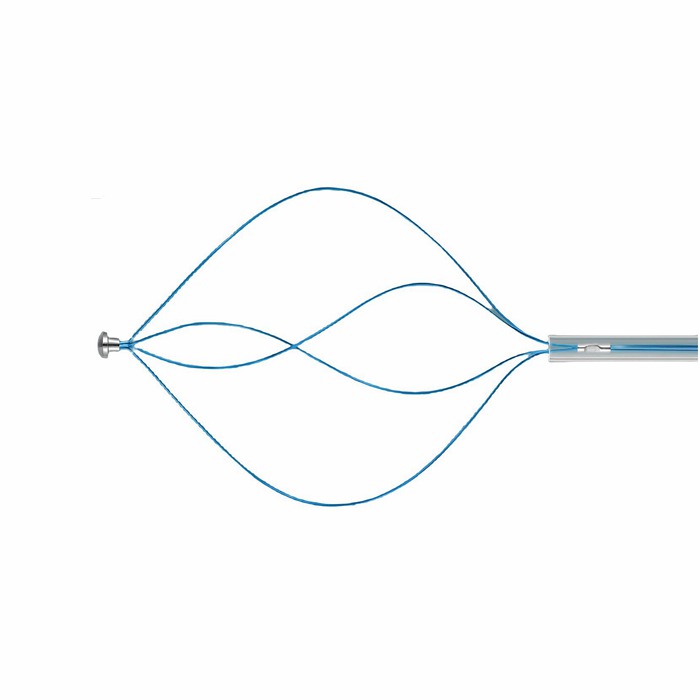

Spirality with tip, Nitinol

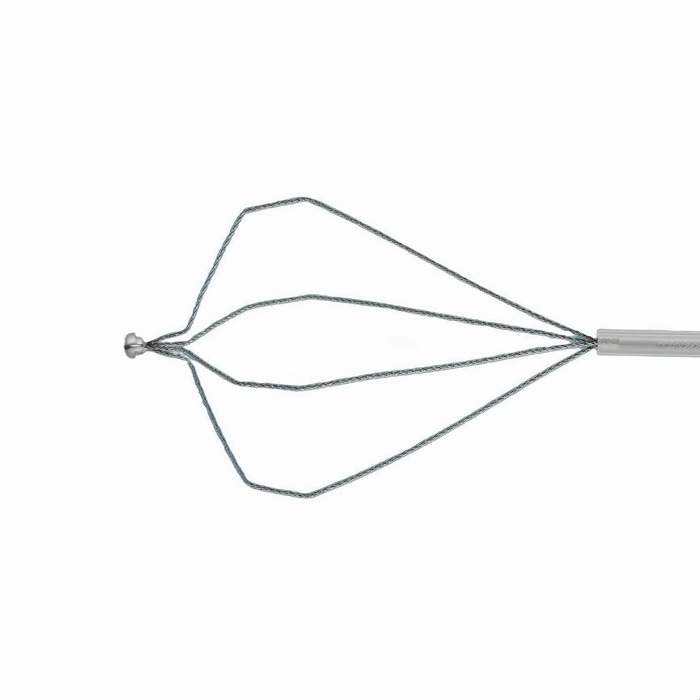

Diamond with Tip, Stainless Steel
Specification：
| Item No. | Tube Diameter/Working Length | Working Channel | Openning Width | Scope Of Use | Type/Material |
| AF-D1807GL0 | Ø1.8x700mm | ≥Ø2.0mm | 10/15/20mm | Choledochscopy | Diamond with Tip, SS |
| AF-D1810GL0 | Ø1.8x1000mm | ≥Ø2.0mm | 10/15/20mm | Bronchoscopy | Diamond with Tip, SS |
| AF-D1816GL0 | Ø1.8x1600mm | ≥Ø2.0mm | 10/15/20mm | Gastroscopy | Diamond with Tip, SS |
| AF-D2415GL0 | Ø2.4x1500mm | ≥Ø2.8mm | 10/15/20/25/30/35mm | Gastroscopy | Diamond with Tip, SS |
| AF-D2417GL0 | Ø2.4x1700mm | ≥Ø2.8mm | 10/15/20/25/30/35mm | Gastroscopy | Diamond with Tip, SS |
| AF-D2421GL0 | Ø2.4x2100mm | ≥Ø2.8mm | 10/15/20/25/30/35mm | Gastroscopy | Diamond with Tip, SS |
| AF-D2423GL0 | Ø2.4x2300mm | ≥Ø2.8mm | 10/15/20/25/30/35mm | Colonoscopy | Diamond with Tip, SS |
| |
|
|
|
|
|
| AF-D1807GL1 | Ø1.8x700mm | ≥Ø2.0mm | 10/15/20mm | Choledochscopy | Semi-Circle w/o Tip, Nitinol |
| AF-D1810GL1 | Ø1.8x1000mm | ≥Ø2.0mm | 10/15/20mm | Bronchoscopy | Semi-Circle w/o Tip, Nitinol |
| AF-D1816GL1 | Ø1.8x1600mm | ≥Ø2.0mm | 10/15/20mm | Gastroscopy | Semi-Circle w/o Tip, Nitinol |
| AF-D2415GL1 | Ø2.4x1500mm | ≥Ø2.8mm | 10/15/20/25/30/35mm | Gastroscopy | Semi-Circle w/o Tip, Nitinol |
| AF-D2417GL1 | Ø2.4x1700mm | ≥Ø2.8mm | 10/15/20/25/30/35mm | Gastroscopy | Semi-Circle w/o Tip, Nitinol |
| AF-D2421GL1 | Ø2.4x2100mm | ≥Ø2.8mm | 10/15/20/25/30/35mm | Gastroscopy | Semi-Circle w/o Tip, Nitinol |
| AF-D2423GL1 | Ø2.4x2300mm | ≥Ø2.8mm | 10/15/20/25/30/35mm | Colonoscopy | Semi-Circle w/o Tip, Nitinol |
|
|
|
|
|
|
| AF-D1807GL2 | Ø1.8x700mm | ≥Ø2.0mm | 10/15/20mm | Choledochscopy | Spirality with tip, Nitinol |
| AF-D1810GL2 | Ø1.8x1000mm | ≥Ø2.0mm | 10/15/20mm | Bronchoscopy | Spirality with tip, Nitinol |
| AF-D1816GL2 | Ø1.8x1600mm | ≥Ø2.0mm | 10/15/20mm | Gastroscopy | Spirality with tip, Nitinol |
| AF-D2415GL2 | Ø2.4x1500mm | ≥Ø2.8mm | 10/15/20/25/30/35mm | Gastroscopy | Spirality with tip, Nitinol |
| AF-D2417GL2 | Ø2.4x1700mm | ≥Ø2.8mm | 10/15/20/25/30/35mm | Gastroscopy | Spirality with tip, Nitinol |
| AF-D2421GL2 | Ø2.4x2100mm | ≥Ø2.8mm | 10/15/20/25/30/35mm | Gastroscopy | Spirality with tip, Nitinol |
| AF-D2423GL2 | Ø2.4x2300mm | ≥Ø2.8mm | 10/15/20/25/30/35mm | Colonoscopy | Spirality with tip, Nitinol |
