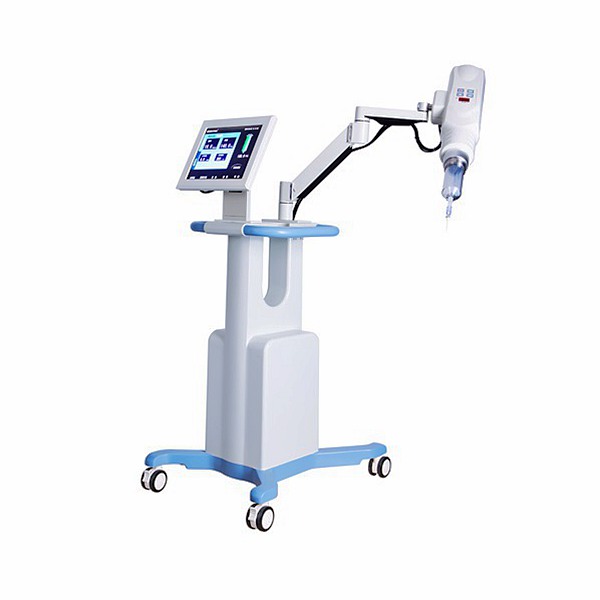

Product Name: 150ml 1200psi DSA Angiography Contrast Media Injector, coronary angiography, ventriculograms and aortograms digital gastrointestinal diagnosis peripheral blood-vessel imaging multiple imaging injectio
Ref No. Zenith H15
Type. DSA Single Head 150ml, Floor Pededal
Feature:
Zenith Angiography Injectoris an injector for multiple imaging applications: coronary angiography,ventriculograms and aortograms, etc. It can also be used in digitalgastrointestinal diagnosis for peripheral blood-vessel imaging. It can injectfluid during CT contrast-enhanced scan as well.
Characteristic:

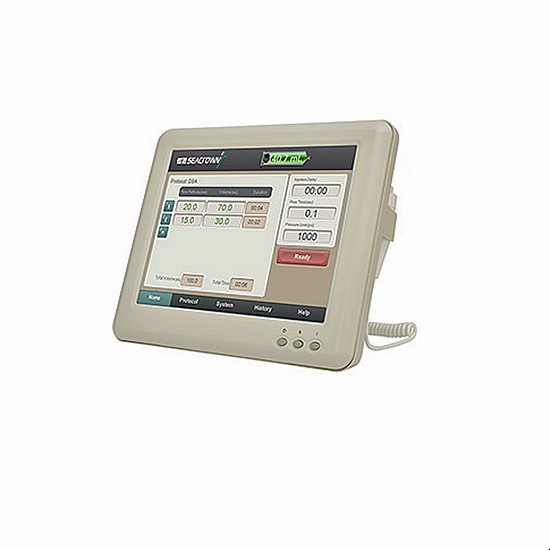

●Largecolor touch-screen makes the operation more intuitive and makes the injectionplanning and process controlling easier
●Clearand perspicuous operate screen
●Multiple,safe and reliable ports work well with different imaging equipements
Specification:
Syringe Capacity：150ml
Flow Rate programmable:0.1 to 50.0 ml/sec
pressure Limits programmable：0 to 1200psi
Injection Capabilities：1 to 8 phases
Item | Description |
Electrical Requirements | a.c.220V, 50Hz, 800VA |
Console | Color Touch Screen |
Operation Interface | Selectable in English, French, German and Chinese |
Flow Rate | 0.1 to 50 ml/sec. in 0.1 ml/sec. increments |
Volume | 0.1 ml to max. syringe capacity |
Rise Time | 0.1~1.0 sec., in 0.1 ml increments |
Syringe Capacity | 150ml |
