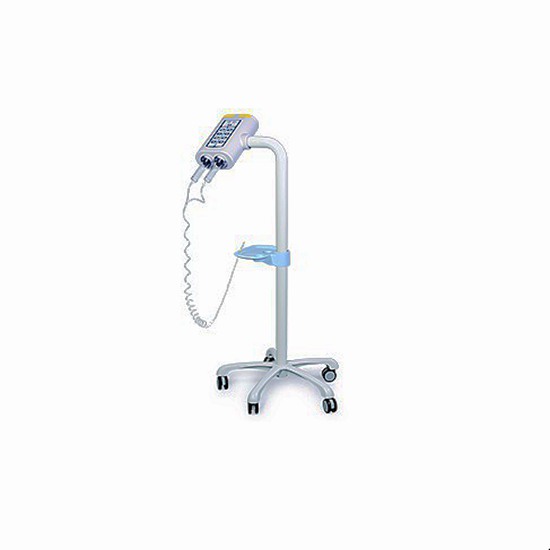

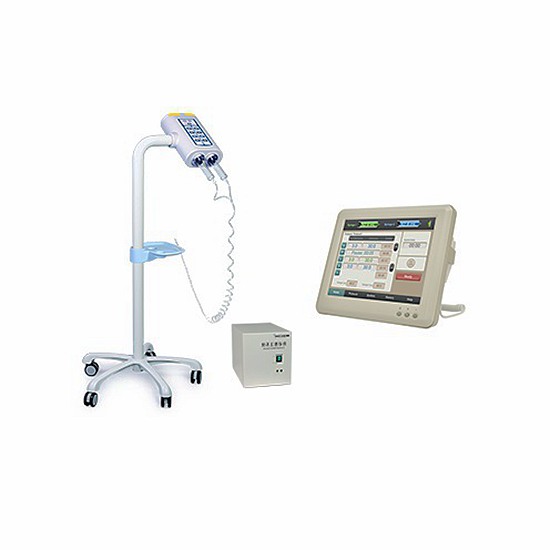

Product Name: 65ml MR saline contrast medium Injector system, KVO Dual syringe magnetic resonance imaging enhanced injection machine Zenith-C60
Ref No. Zenith C60
Type. MRI Dual Head 2-65ml, Floor Pededal
Feature:
Zenith MR Injector withnon-magnetic structure can meet all your need in CE-MR imaging and havemultiple helpful features.C60 is compatible with magnetic force up to 3T MRimaging system.
Benefits of Dual Syringe
●Delivering saline after the injection of contrast medium, which enhance the quality of imaging.
●KVO procedure prevent the position of injection from blood coagulation.
Characteristic:
●Excellent performance, 8 Amp. hour battery offers longer scan times between ges
●Independent KVO procedure

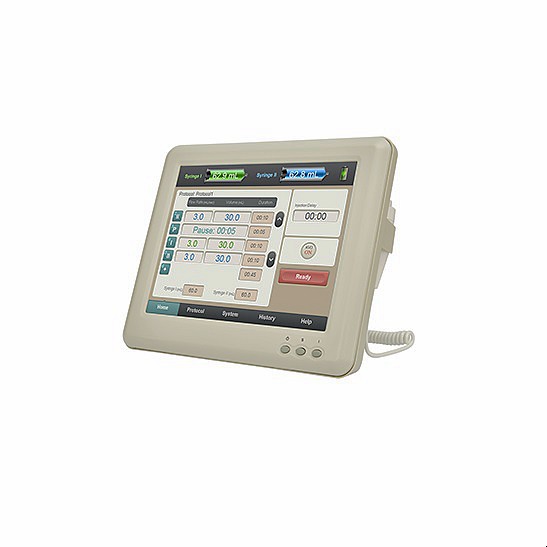

●On-screen tutorial for the simplification of set-up procedure
●Flexible power management with Integrated Continuous Battery Charger option allows either full, non-tethered battery operation or continuous battery ging through AC power connection - switch to either battery or power source in seconds
●Mobile configuration available for MR trailers
●Multi-phase injection control
Specification:
●Flow Rate programmable:0.1 to 10.0 ml/sec in 0.1 ml/sec increments
●Pressure Limits: Factory set not exceed 350psi
●Injection Capabilities:1 to 8 phases
Item | Description |
Electrical Requirements: | Arm Controller: Either electric network or battery Electric network: a.c.198~242V, 50/60 Hz, 200VA Battery: 8Ah Lithium polymer battery Console: Input DC12V, 2A |
Operation Interface | Selectable in English, French, German and Chinese |
Flow Rate | 0.1 ml/sec. to 10 ml/sec. in 0.1 ml/sec. increments |
Syringe Capacity | 65ml |
Volume | 0.1 ml to syringe capacity in 0.1 ml increments |
