Product Name: Seacrown Zenith C10/C20 single head CT Contrast Media Injector, CT scan angiography imaging enchanced contrast agent injection machine
Ref No. Zenith C10/C20
Type. Single Head 200ml, Floor Pededal
Feature:
ZenithCT injector is made for the injection of a contrast agent in enhanced CT scanand CT angiography.
Characteristic:
Zenith CT injector is controlled by acomputer system. It takes advantage of specialized syringes and otheraccessories, so the cost of injection is very low. The delivery rate and volumesatisfy all the criteria required by enhanced CT scan.
●The highest delivery rate: 9.9ml/s, the lowestdelivery rate: 0.1ml/s. The large range of rate from 0.1ml/s to 9.9 ml/ssatisfies all of the requirements for any enhanced CT scan. One to four phasesinjections meet a variety of CT injection’s need.
●Large-size disposable syringe meets variousrequirements for volume of any enhanced CT scan.
●The highest pressure limit increase the safety ofprocess
●Relay input/output interface connects todifferent CT scan facilities in the safest manner.
●Small diameter pipe tube reduces the waste ofcontrast agent, and synonizes the delivery of contrast agent and scan.

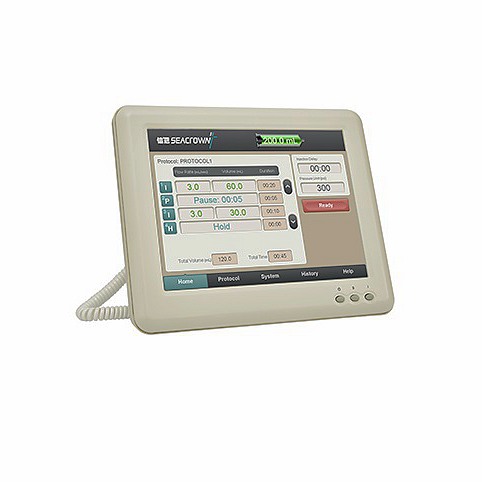

●Long-distance control box enables the user tomonitor it in either control room or scanning room.
Specification:
Flow Rate: 0.1 to 10 ml/sec in 0.1 ml/secincrements
Pressure Limits: Programmable from 50 to 350 psiin 1 psi increments
Injection Capabilities: 1 to 8 phases
Item | Description |
Electrical Requirements | a.c.198~242V, 50/60Hz, 200VA |
Operation Interface | Selectable in English, French, German and Chinese |
Flow Rate | 0.1 mL/sec. to 10 mL/sec. in 0.1 mL/sec. increments |
Syringe Capacity | 100ml for Zenith-C10; 200ml for Zenith-C20 |
Volume | 0.1 ml to syringe capacity in 0.1 ml increments |
